High Frequency Technology in Formed Plywood Production

High Frequency Technology in Formed Plywood Production

33 years of partnership with formed plywood manufacturers

The use of formed plywood parts in the furniture industry is increasing day by day. The use of High Frequency (HF) technology in the manufacturing of these parts significantly reduces the production times compared to conventional systems and increases the efficiency of the enterprise. Homogeneous gluing can be achieved in minutes.
SONAR HF generators are designed with dual outputs so as to provide energy to two separate presses respectively for continuous production.
This technology is mostly used in the furniture industry for gluing and shaping of veneer, solid panel production, door, window, frame production, and similar applications.

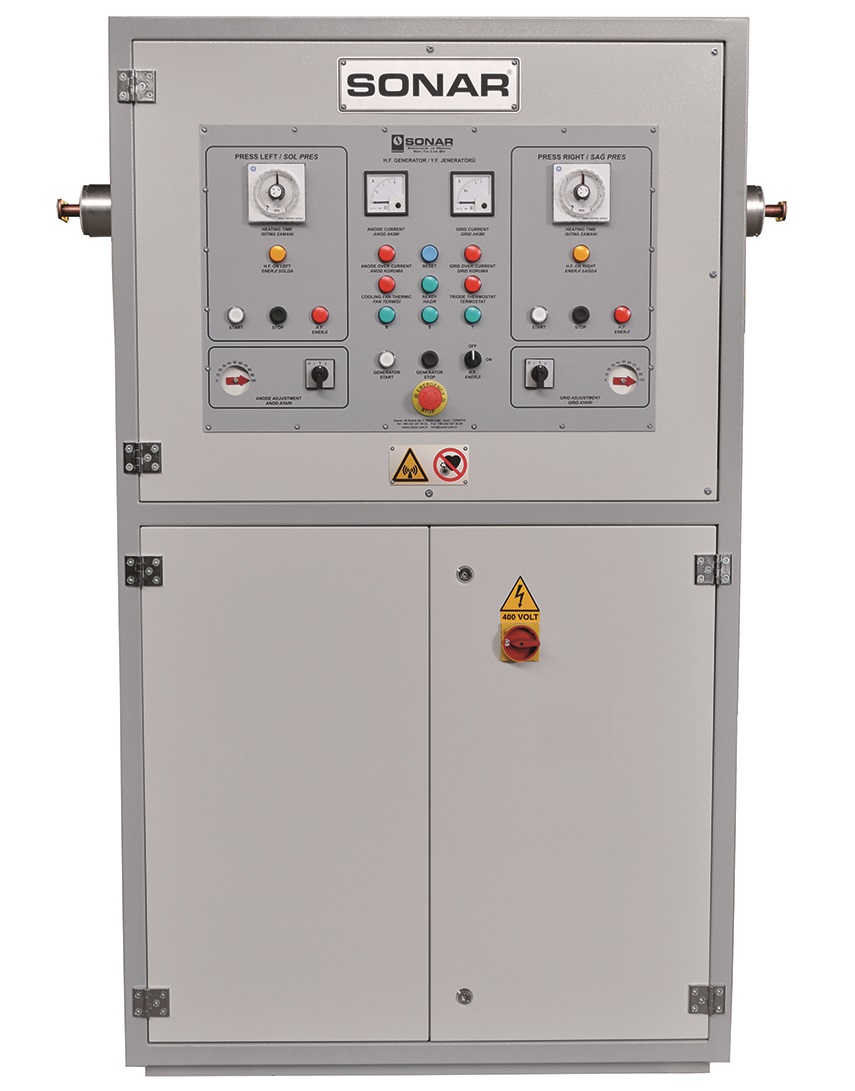

HIGH-FREQUENCY GENERATOR



TECHNICAL SPECIFICATIONS
 RF Output Power 30kW 45kW 60kW
 Input Power 40kVA 60 kVA 90kVA
 Mains Connection 3P/ 400V / 50Hz
 Frequency 13,56 MHz
 Cooling Air or Water
 Length (mm) 1050 1250
 Height (mm) 1800 1800
 Width (mm) 1150 1250
 RF Output at Right and Left





HYDRAULIC PRESSES
